  • Segmented MPP Film Cum Diamond Amineo, T Pattern, 1/2 Pattern
  • Segmented MPP Film Cum Diamond Amineo, T Pattern, 1/2 Pattern
  • Segmented MPP Film Cum Diamond Amineo, T Pattern, 1/2 Pattern
  • Segmented MPP Film Cum Diamond Amineo, T Pattern, 1/2 Pattern

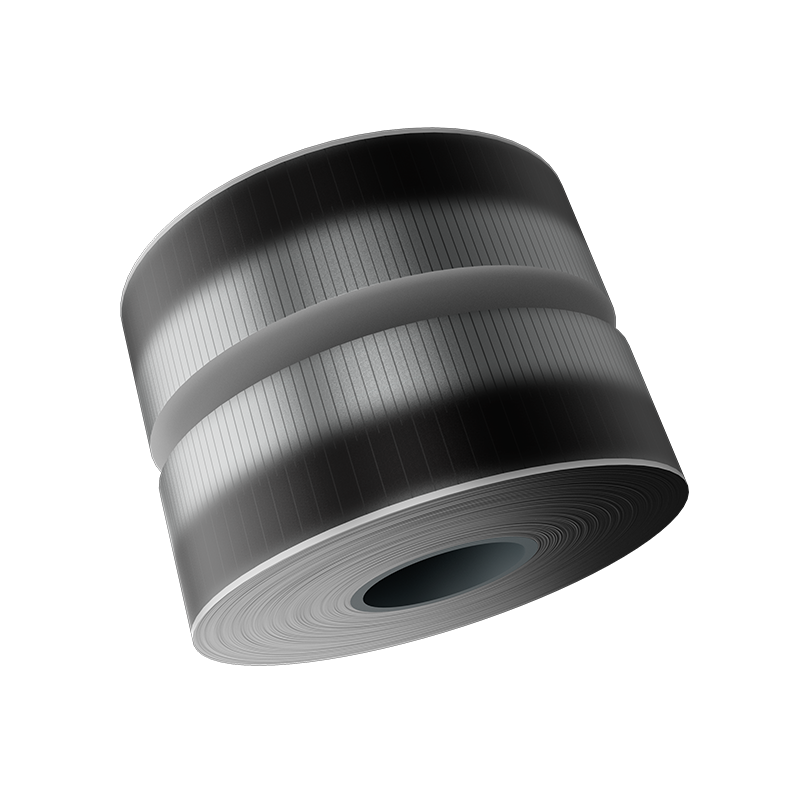

Segmented MPP Film Cum Diamond Amineo, T Pattern, 1/2 Pattern

Pelliculam nostram incisuram Segmented MPP inducens cum variis exemplaribus incluso Diamond, T, et dimidia T, ad tuas applicationes capacitorem verteret.
Facienti e cinematographico polypropylene premium cum normali crassitudine vndique ab 2.0µm ad 15.0µm, hoc productum praebet flexibilitatem eximiam et durabilitatem ad varias necessitates electricas accommodandas.
Facere unum consilium et cum aluminio vel zinco-aluminium stannum in una parte linivit, cinematographica nostra conductivity et stabilitatem efficit, ad capacitatem perficiendi essentialem.
Unica ora structura, gravi ore propria, firmitatem auget ac faciliorem reddit inconsutilem integrationem in comitiis capaci- toribus, ad diuturnum firmitatem praestandum.
Cum electione inter rectam lineam sectionem vel undam sectionem ad modos scindendi, customization is labor est ut munus specificum requisitis tuis respondeat.
Nostra Segmented MPP Pellicula praesto est cum optionibus resinae basi cinematographicae tam borealis quam non-borealis, praebens versatilem ad varias optiones fabricandas.
Usus singularis effectus cum Segmented MPP pellicula nostra, praebens exemplaria porttitor ut capacitorem tuum incepta elevet. Contactus nos hodie detegere quomodo solutio pelliculae haec provectae applicationes tuas augere possit.
Contact Us
  • Segmented MPP Film Cum Diamond Amineo, T Pattern, 1/2 Pattern
  • Segmented MPP Film Cum Diamond Amineo, T Pattern, 1/2 Pattern
  • Segmented MPP Film Cum Diamond Amineo, T Pattern, 1/2 Pattern
  • Segmented MPP Film Cum Diamond Amineo, T Pattern, 1/2 Pattern
PREV：Al MPP Film Utrisque Margin
NEXT：Uno margine Zn-Al MPP Film Cum Ramp Repugnantia

Features

Specifications

Turpis amet Polypropylene pellicula
Normalis crassitudine 2.0 μ m ~15.0 μ m
Margine genus Unius
Metallum coating Aluminium vel Zinc-aluminium alloy
Coing parte Unius
Ora structuram Gravis ore
uicta modum Recta secans vel unda secans

Quadrata resistentia: Normal film Latitudo et Margin

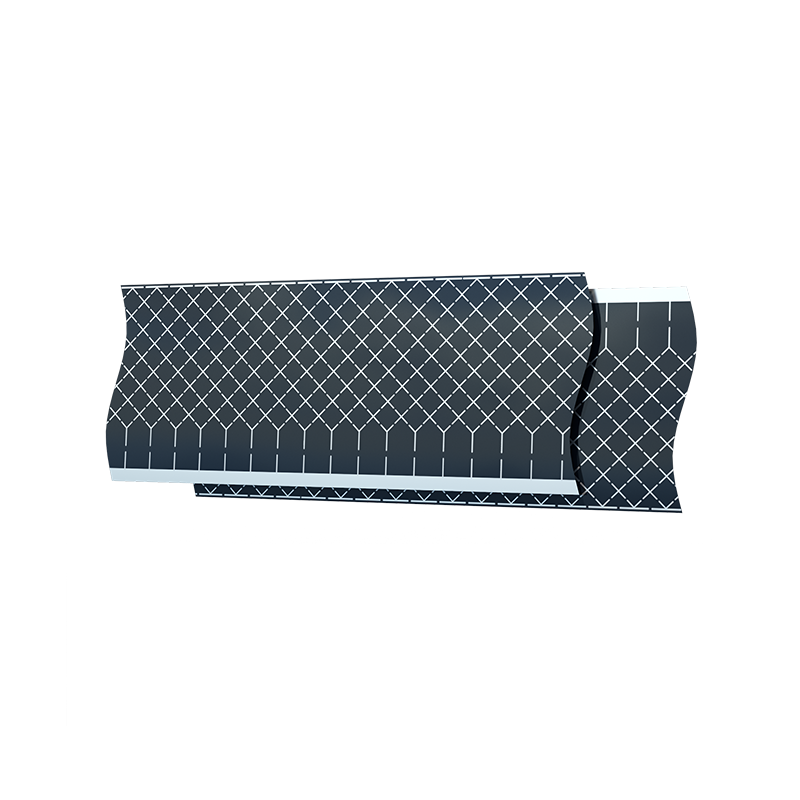

Adamas Pattern T-Patern 1/2 T-Patern
Latitudo (mm) Latitudo (mm) Latitudo (mm) Latitudo (mm)
25 60 25 25
30 75 30 35
35 85 37.5 45
37.5 90 40 50
40 100 55
45 120
50 150

Aucti resistentia Normalis resistentia
(2-4) Ω/□ (6~9)Ω/□
(2 ~ 4) Ω/ □ (7 ~ 11)Ω/ □
(2 ~ 4)Ω/ □ (12 ~ 18)Ω/ □
(2-4)Ω/□ (17 ~ 23)Ω/ □
(1 ~ 5)Ω/ □ (35 ~ 55)Ω/ □
(1 ~ 5)Ω/ □ (40 ～ 60)Ω/ □

Intus / extra core diameter
Interius core diameter / TOLERATIO Extra core diameter / TOLERATIO
75mm 1/-0.5mm 175 ±25mm
220 ± 20mm
240 ±20mm
280 ±20mm
320 ±20mm

Mauris laoreet condimentum

Properties Unitas Typical valorem
Density g/cm* 3 0.905±0.005
Crassitudo µm 2.0 12
distrahentes Fortitudo MD (MPa) ≥100
Elongation at Break MD (%) 20～200
Modulus elasticus MD (MPa) 2800
Calor DECREMENTUM MD (%) ≤5 (CXX°C, 10min)
Wetting Tensio mN/m* 38 (coronae tractata parte);
Superficies asperitas µm 0.08
Liquefactio Point ℃ 172
Volumen Resistivity Ω.m 10 15
Break-down intentione V/µm ≥350 (23°C, DC )
Dielectric Constant 2.2 (20℃，1KHz)
Dissipatio Factor ≤4×10 -4 (20℃，1KHz )
RC ΩF ≥5×10 4
